i300 / i600 lab tour


For variable temperature settings and high temperature stability (+/- 0.1°C)



i300

SUN Ultra 5/400 host computer: 256 MB RAM / 40 GB hard drive / 1.44 Mb floppy drive / 32x CD-ROM / 19" LCD monitor / software

i400

SUN Blade 150/650 host computer: 512 MB RAM / 80 GB hard drive / 16x DVD-ROM / 19" LCD monitor / software

i600

SUN Blade 1500/1.0 GHz host computer: 1 GB RAM / 80 GB hard drive / 16x DVD-ROM / 19" LCD monitor / software


Contains all the hardware required to run NMR experiments.

(click on picture to see inside)



For more details click on image.



Used to ensure that the sample is properly positioned in the spinner and in the magnet. Sample height can be checked, too.

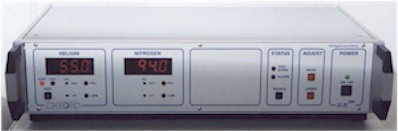

This is a helium and nitrogen level meter (i600 only in this form).



paper is letter size 8.5" x 11" (216 mm x 280 mm)


coffee_cup.jpg (956 bytes) just a coffee cup, not essential but does not hurt either...
